This section of fittings are stocked components based on our standard thread and hose barb options.

Please note:  For the items that include a tube barb, the description identifies the outside diameter (O.D.) of the barb.  To assist you in selecting the appropriate tube barb, click on Tube Barb Detail

We anticipate this category to be a growing area of our business.  To this end, if the item you require is not shown, please inquire.  If we already are tooled to produce your request and feel this is a viable "standard", we can produce a larger quantity.  This allows us to add this new item to our standard offerings and reduce the selling price.

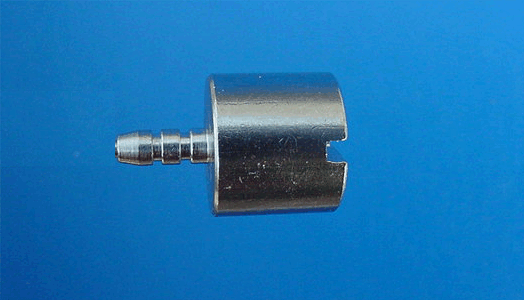

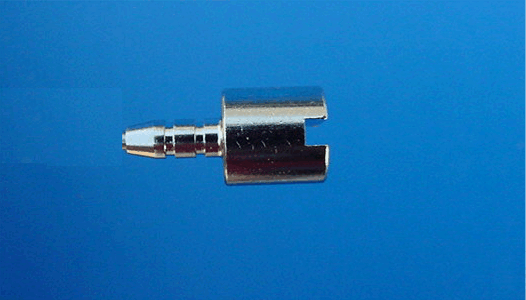

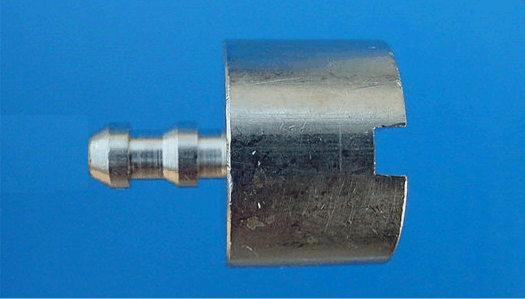

Sinkers

Designed to maintain tube at bottom of vessel.  Special feature to avoid obstruction.




Thread to Barb

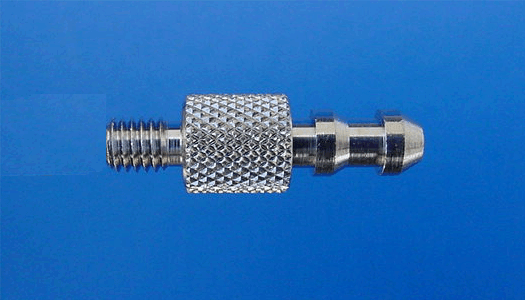

A1500webg.gif (87130 bytes)A1500 #10-32 male thread to .218" O.D. Barb

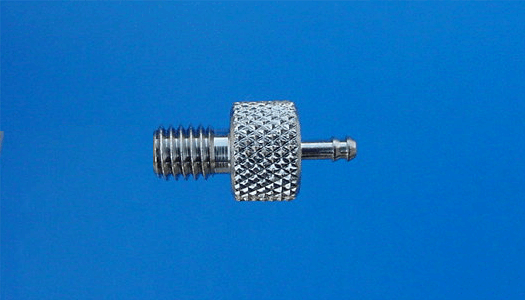

A1501webg.gif (97825 bytes)A1501 #10-32 male thread to .085" O.D. Barb

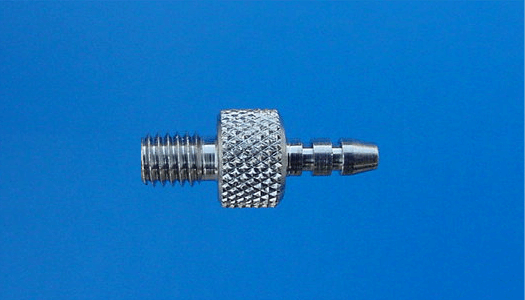

A1503webg.gif (95212 bytes)A1503 #10-32 male thread to .125" O.D. Barb

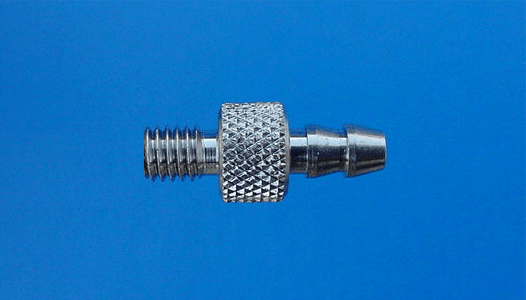

A1504webg.gif (93536 bytes)A1504 #10-32 male thread to .175" O.D. Barb
