Stopcocks		 All of our Luer Fittings are manufactured to ISO 594/1,2  the international standard for Luer Tapered components.

Our products are pressure tested at 45 PSI at various stages of the manufacturing process, as well as at final inspection.

To see Luer to Tube Barb selections that are designed for bulkhead mount click on Luer to Bulkhead.

Please note:  The description below identifies the outside diameter (O.D.) of the barb.  To assist you in selecting the appropriate tube barb, click on Tube Barb Detail.

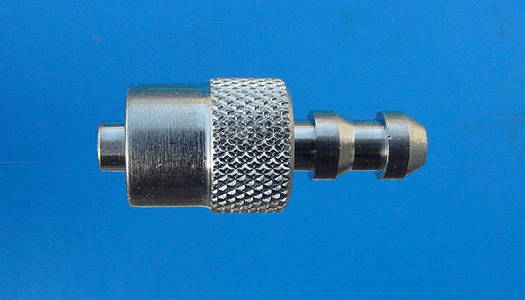

A3220webg3.gif (91487 bytes)A3220 Male Luer Lock (knurled), .218" O.D., no slots  *(included in our new series of economical no slot male luer locks, alternative to A1220)

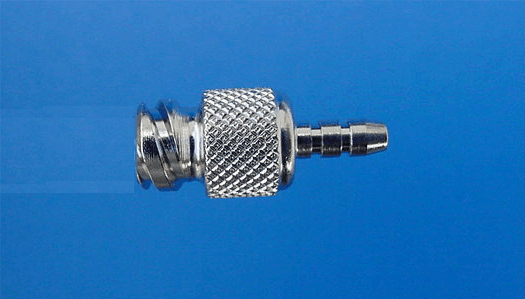

A7230webg.gif (85489 bytes)A7230 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer, .125" O.D.

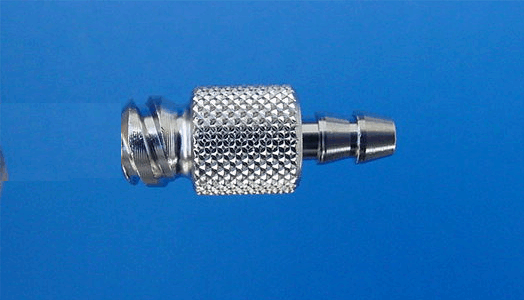

A7232webg.gif (86981 bytes)A7232 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks.  Female Luer, .175" O.D.

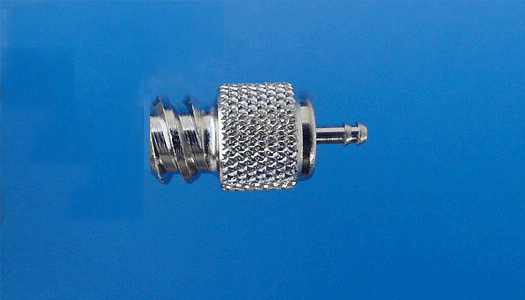

A7235webg.gif (88513 bytes)A7235  These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer, .085 O.D.

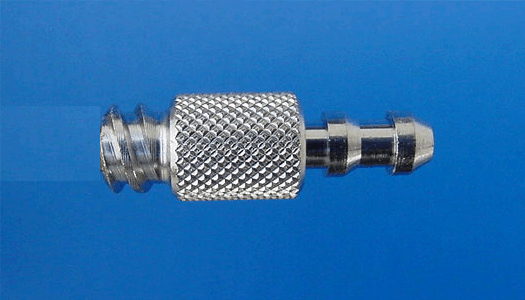

A7241webg.gif (85994 bytes)A7241 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks.  Female Luer, .218" O.D.

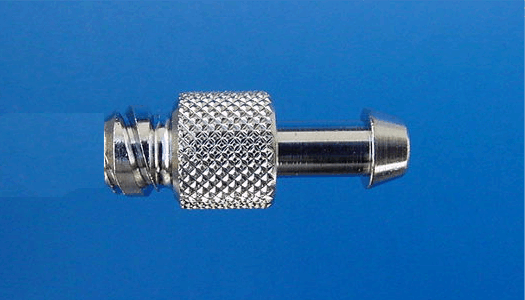

A7244webg.gif (84520 bytes)A7244  These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer, .272" O.D.











  is a registered trademark of S4J Manufacturing Services Inc.
