Stopcocks		All of our Luer Fittings are manufactured to ISO 594/1,2  the international standard for Luer Tapered components.

Our products are pressure tested at 45 PSI at various stages of the manufacturing process, as well as at final inspection.



Tuohy Borst Adaptors

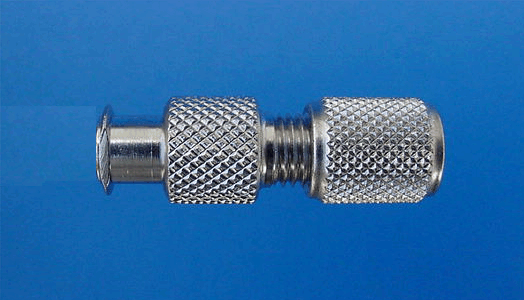

A1510webg.gif (90982 bytes) A1510 Female Luer to Tuohy Borst, small cap

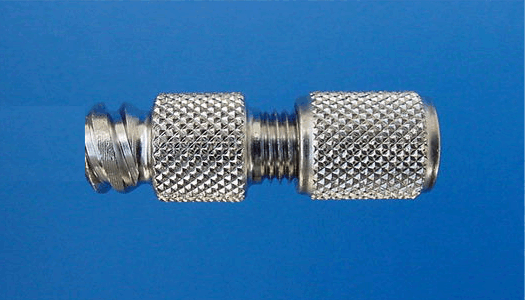

A7510webg.gif (95629 bytes)A7510 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Tuohy Borst, small cap

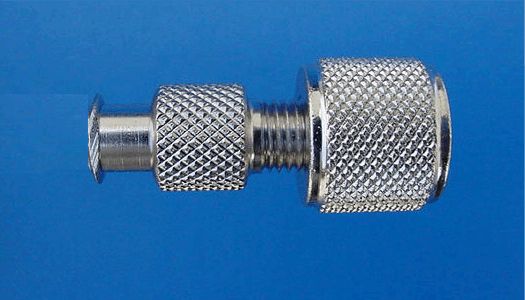

A1511webg.gif (97545 bytes) A1511 Female Luer to Tuohy Borst, large cap

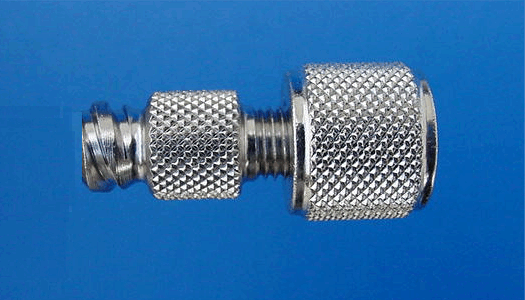

A7511webg.gif (95308 bytes)A7511 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Tuohy Borst, large cap

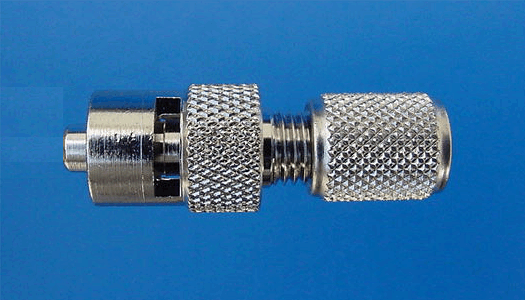

A1520webg.gif (97609 bytes) A1520 Male Luer Lock to Tuohy Borst, small cap

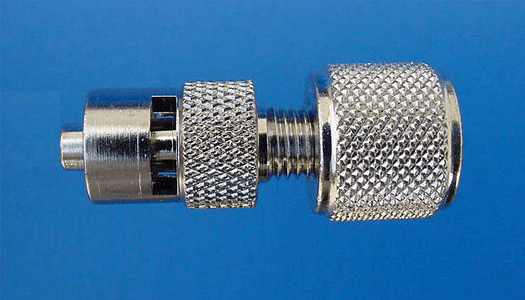

A1521webg.gif (97073 bytes) A1521 Male Luer Lock to Tuohy Borst, large cap

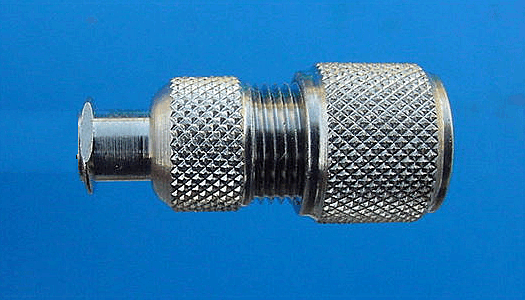

A1530webg.gif (112518 bytes)A1530 Female Luer to Tuohy Borst, 6-11 Fr.

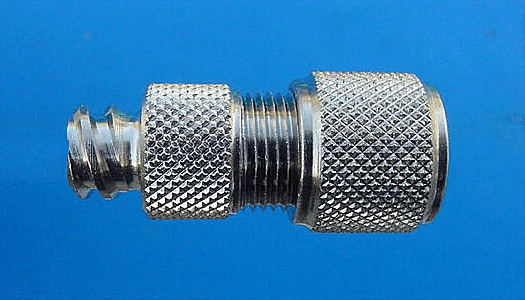

A7530webg.gif (112823 bytes)A7530 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Tuohy Borst, 6-11 Fr.

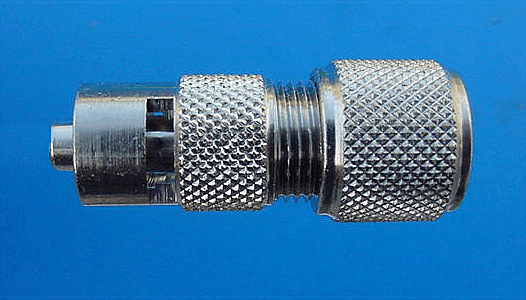

A1540webg.gif (112525 bytes)A1540 Male Luer Lock to Tuohy Borst, 6-11 Fr.



Luer to Vinyl Tubing Connectors

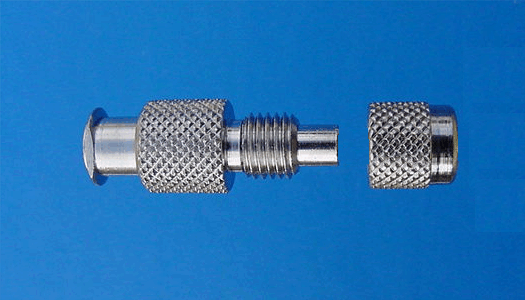

FV4001-04webg.gif (99513 bytes) FV4001- FV4004 Female Luer to Vinyl Tubing, supplied with specified cap  (See table below for individual item sizes)

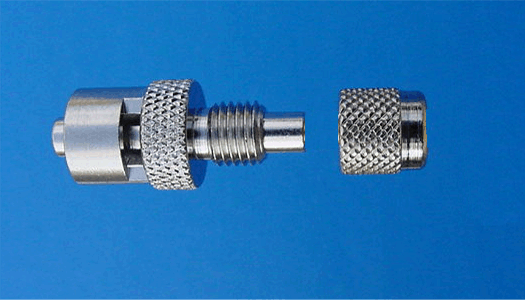

MV3001-04.gif (97694 bytes) MV3001- MV3004  Male Luer Lock to Vinyl Tubing, supplied with specified cap  (See table below for individual item sizes)

Female Luer Lock

Male Luer Lock

 Cap I.D. Vinyl Tubing I.D. Vinyl Tubing O.D.
FV4001 MV3001 .065 .044 .065
FV4002 MV3002 .107 .067 .107
FV4003 MV3003 .142 .082 .142
FV4004 MV3004 .186 .118 .186



Luer to Flare Type Tube Connectors (for use with heat flared polyethylene, polypropylene, or TeflonŽ tubing)

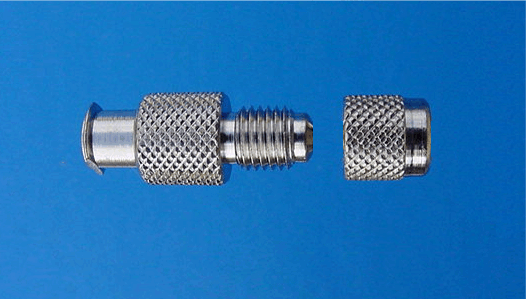

FT4011-15webg.gif (100310 bytes) FT4011 - FT4015 Female Luer to Flare Tube, supplied with specified cap (See table below for individual item sizes)

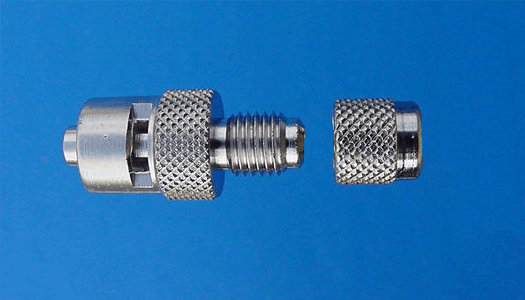

MT3011-15webg.gif (98183 bytes) MT3011 - MT3015 Male Luer Lock to Flare Tube, supplied with specified cap (See table below for individual item sizes)

Female Luer Lock

Male Luer Lock

 Cap I.D.  Tubing I.D. Range  Fitting I.D.
FT4011 MT3011 .045 .010-.025 .020
FT4012 MT3012 .058 .025-.037 .031
FT4013 MT3013 .074 .039-.050 .047
FT4014 MT3014 .105 .062-.071 .070
FT4015 MT3015 .147 .079-.105 .093
