All of our Luer Fittings are manufactured to ISO 594/1,2 the international
standard for Luer Tapered components.
Our products are pressure tested at 45 PSI at various stages of the
manufacturing process, as well as at final inspection.

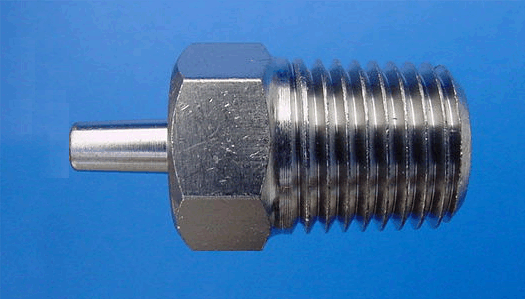

A1303
Male
Luer,
1/4" NPT male

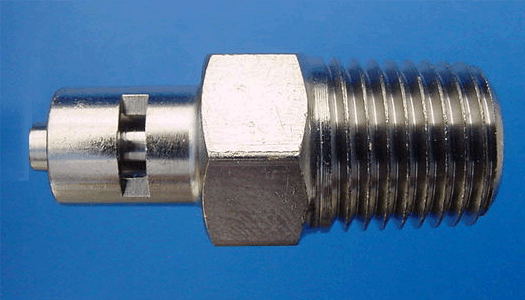

A1304
Male Luer
Lock (9/16" hex), 1/4" NPT male

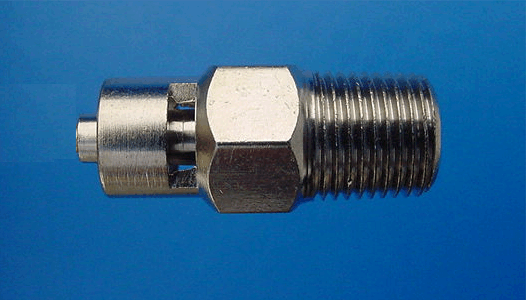

A1305
Male Luer
Lock (7/16" hex), 1/8" NPT male

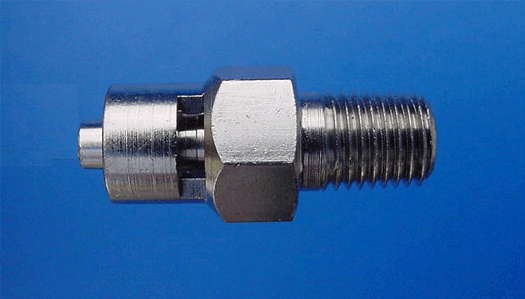

A1306
Male Luer
Lock (7/16" hex),
1/16" NPT male

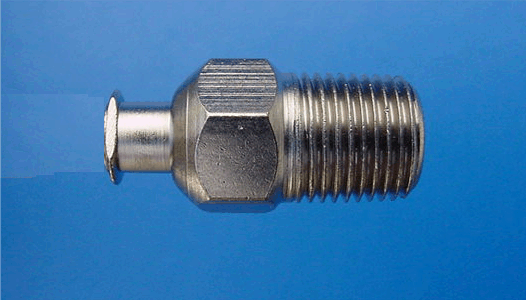

A1307
Female
Luer (7/16" hex), 1/8" NPT male

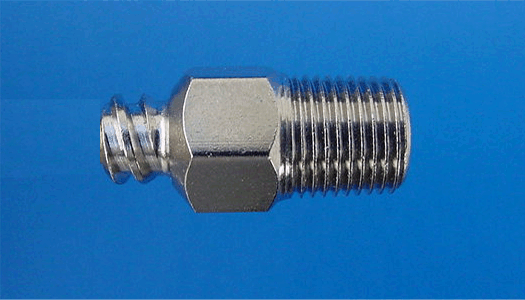

A7307
Female Luer, 1/8" NPT male

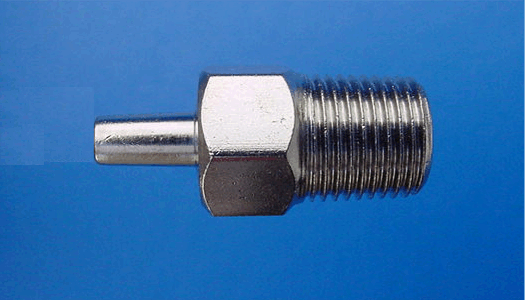

A1308
Male
Luer (7/16" hex), 1/8" NPT male

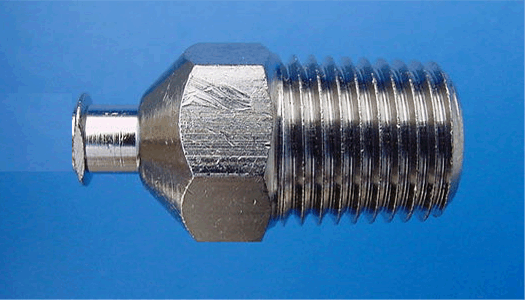

A1309
Female
Luer (9/16" hex), 1/4" NPT male

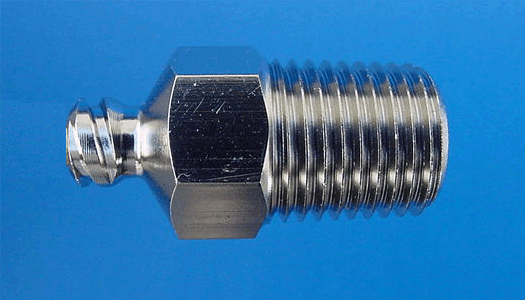

A7309
Female Luer, 1/4" NPT male

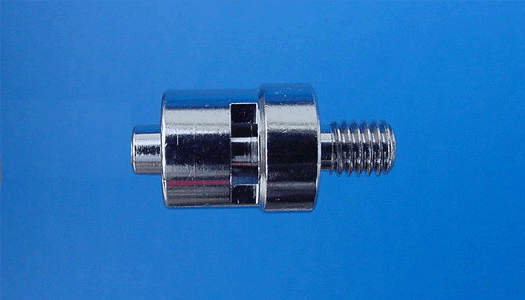

A1330
Male Luer
Lock
(13/32" plain),
#10 - 32 male thread

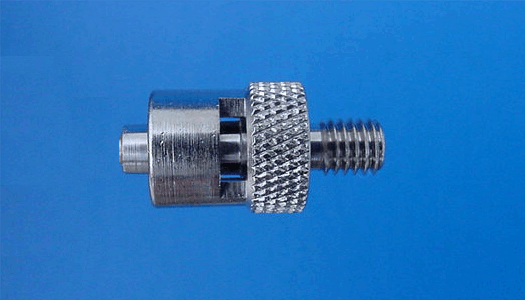

A1331
Male Luer
Lock (13/32" knurled), #10 - 32 male thread

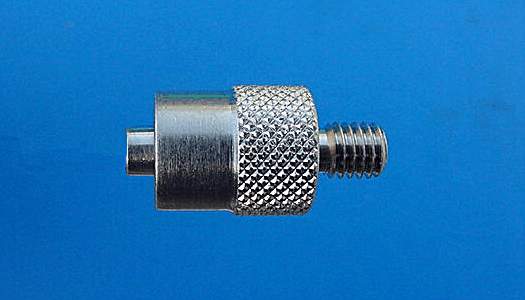

A3331 Male Luer Lock (13/32" knurled), #10 - 32
male thread, no slots *(included in our new series of economical no slot male
luer locks, alternative to A1331)

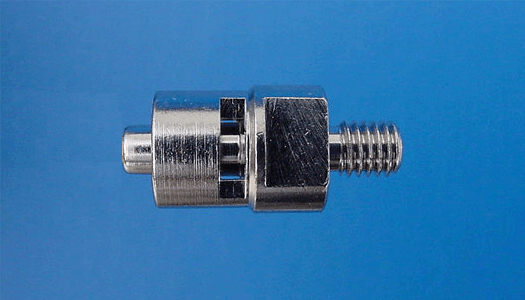

A1332 Male Luer
Lock
(13/32" plain), #10 - 32 male thread, 5/16" wrench flats

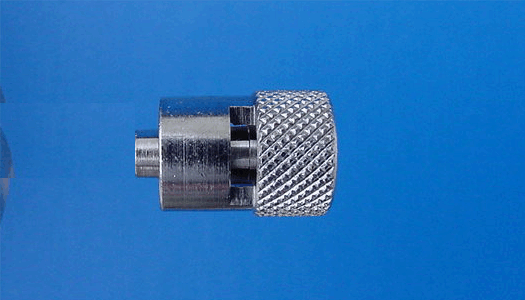

A1340
Male Luer
Lock
(13/32" knurled), #10 - 32 female thread

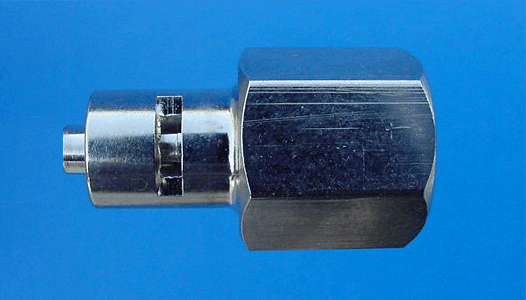

A1345 Male Luer Lock (7/16" hex), 1/8" NPT
female thread

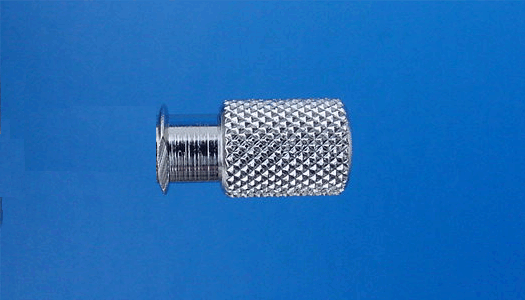

A1350
Female Luer
(5/16" knurled), #10 - 32 female thread

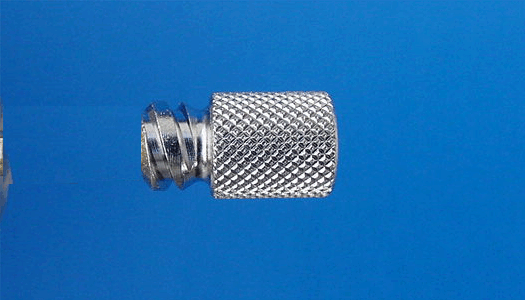

A7350
Female Luer, #10-32 female thread

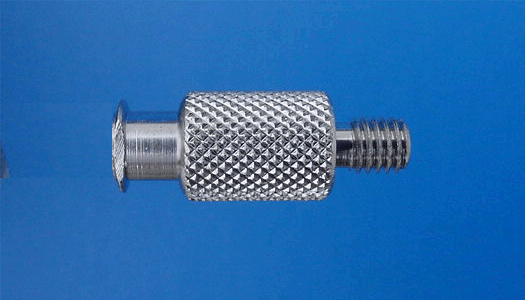

A1360
Female
Luer
(11/32" knurled), #10 - 32 male thread

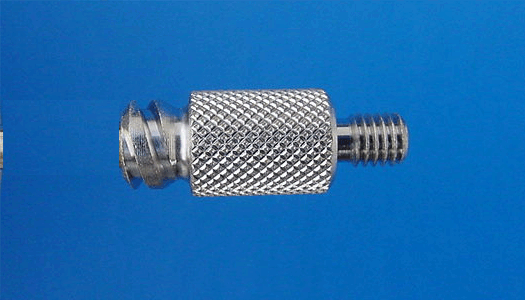

A7360
Female Luer, #10-32 male thread

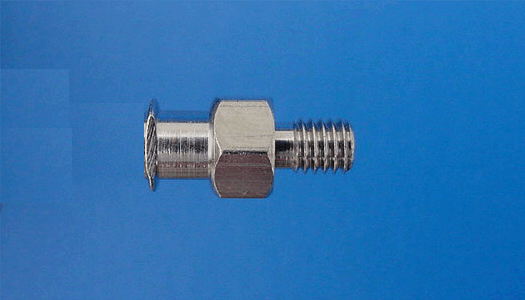

A1361
Female
Luer (5/16" hex), #10 - 32 male thread

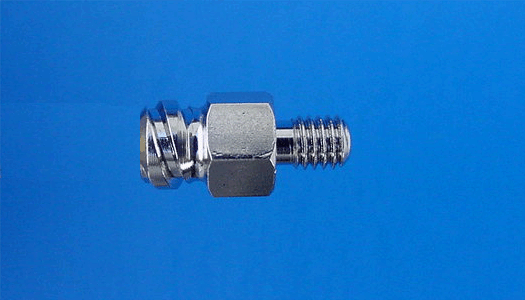

A7361
Female Luer (5/16" hex), #10-32 male thread

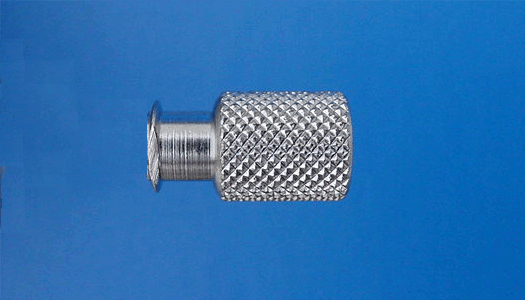

A1370
Female
Luer
(11/32" knurled), 1/4" - 32 female thread

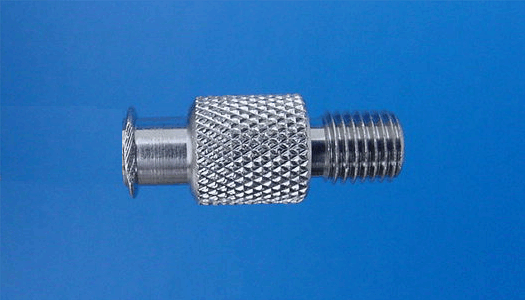

A1380
Female
Luer
(11/32" knurled), 1/4" - 32 male thread

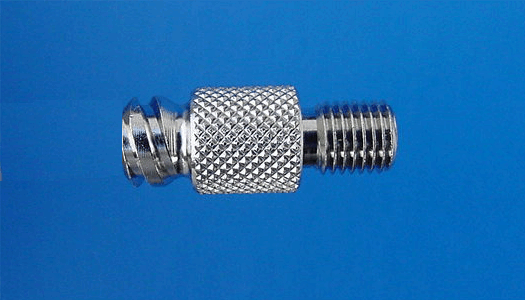

A7380
Female Luer, 1/4"-32 male thread

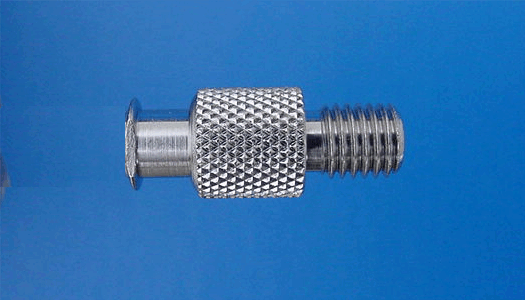

A1381
Female
Luer
(11/32" knurled), 1/4" - 28 male thread

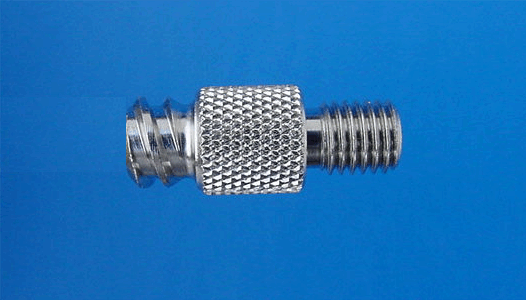

A7381
Female, 1/4"-28 male thread

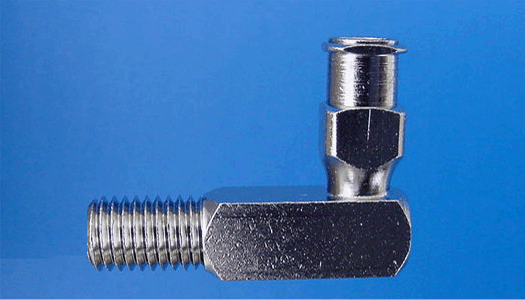

A1391
Female
Luer (90� Elbow), 1/4" - 28 male thread

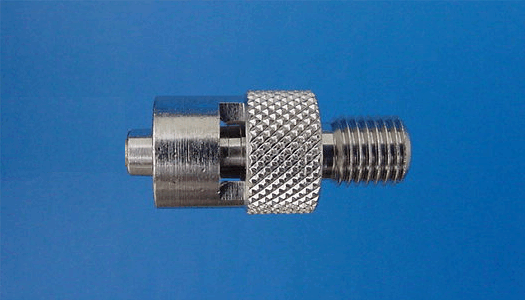

A1410
Male Luer
Lock (13/32" knurled), 1/4" - 32 male thread
A1420
Male Luer
Lock
(13/32" knurled), 1/4" - 28 male thread

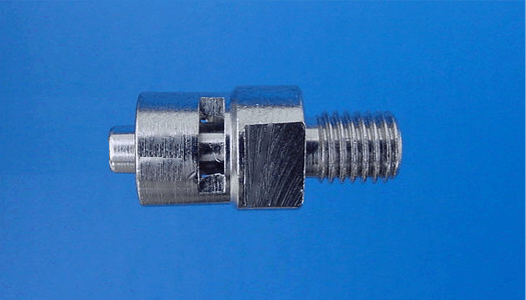

A1421
Male Luer
Lock
(13/32" plain), 1/4" - 28 male thread, 5/16" wrench flats

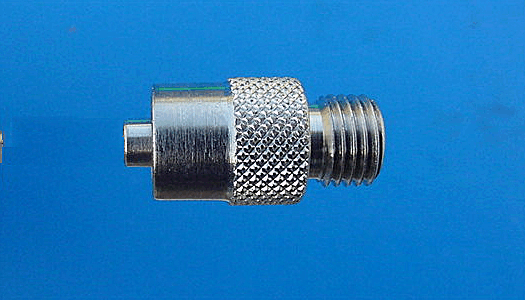

A3422 Male Luer Lock (13/32"
knurled) to 5/16"-28 male thread *(included in our new series of
economical no slot male luer locks)

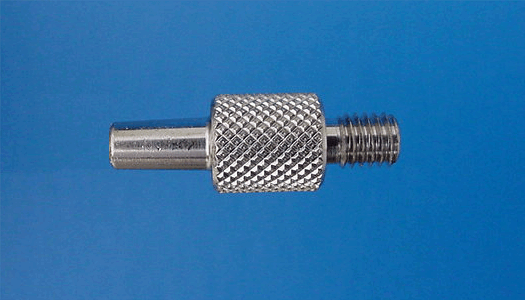

A1430
Male
Luer (5/16" knurled), #10 - 32 male thread

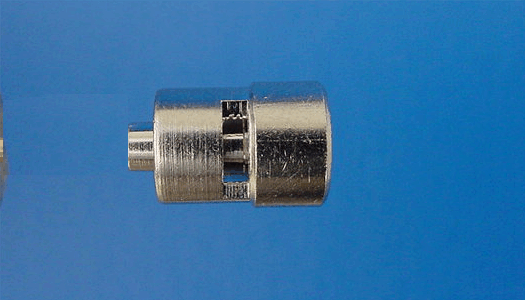

A1460
Male Luer
Lock (13/32" plain), 1/4" - 32 female thread

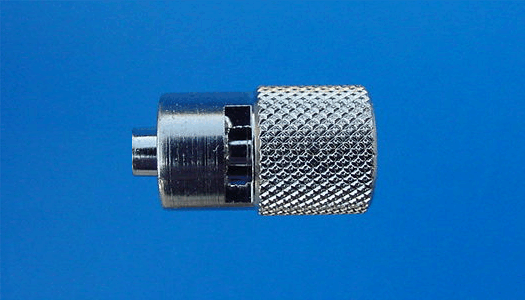

A1464
Male Luer Lock (13/32" knurled), 1/4"-28 female thread

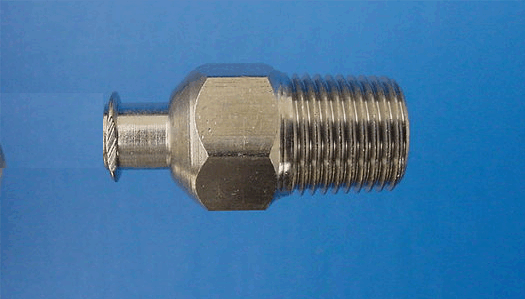

DV6010 Female Luer
Pneumatic Disconnect Valve, 1/8" NPT
Opens only when actuated by a Male Luer Lock made to ISO 594 -1,-2 or ANSI/HIMA
MD70.1-1983 specs.
For a cross-section view of the DV6010
click here

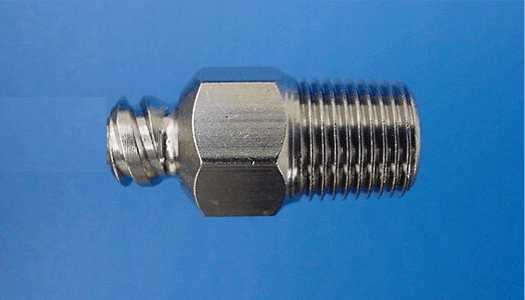

DV7010
Female Luer
Pneumatic Disconnect Valve, 1/8" NPT
Opens only when actuated by a Male Luer Lock made to ISO 594 -1,-2 or ANSI/HIMA
MD70.1-1983 specs.

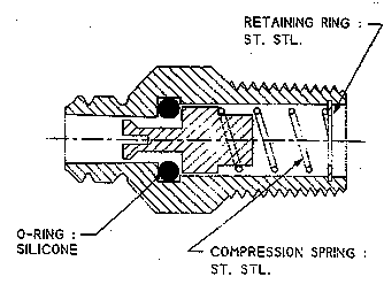

For a cross-section view of the DV7010
click here
