Stopcocks		 All of our Luer Fittings are manufactured to ISO 594/1,2  the international standard for Luer Tapered components.

Our products are pressure tested at 45 PSI at various stages of the manufacturing process, as well as at final inspection.

Please note:  The description below identifies the outside diameter (O.D.) of the barb.  To assist you in selecting the appropriate tube barb, click on Tube Barb Detail.

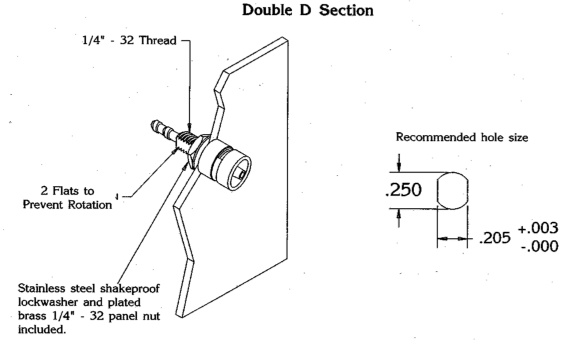

Please note:  The following fittings are bulkhead style for panel mount applications, complete with Double D section (See below) and mounting hardware.

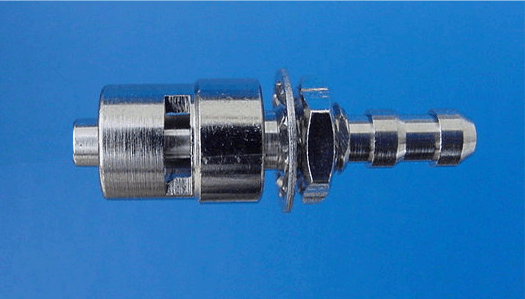

A1440webg.gif (91680 bytes)A1440 Male Luer Lock to Bulkhead to .195" O.D. Barb

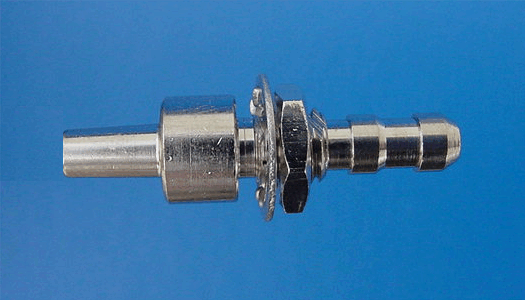

A1441webg.gif (94560 bytes)A1441 Male Luer to Bulkhead to .195" O.D. Barb

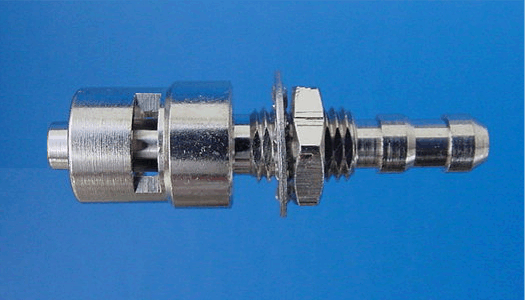

A1442webg.gif (96321 bytes)A1442 Male Luer Lock to Bulkhead to .195" O.D. Barb
1/4" - 32 threaded length is 3/8" long for thicker panels

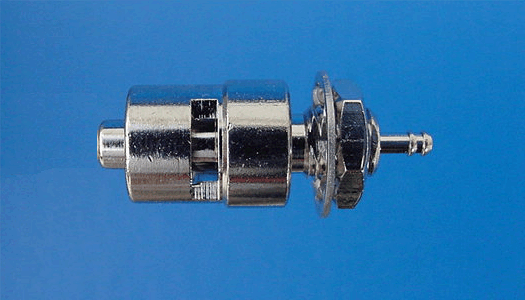

A1445webg.gif (95357 bytes)A1445 Male Luer Lock to Bulkhead to .085" O.D. Barb

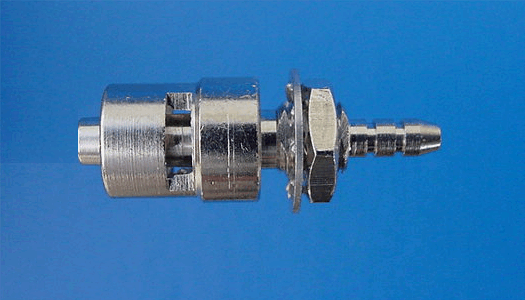

A1450webg.gif (96329 bytes)A1450 Male Luer Lock to Bulkhead to .125" O.D. Barb

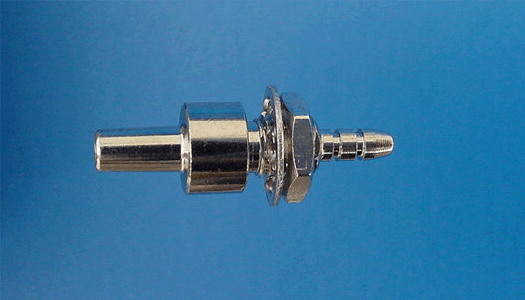

A1451webg.gif (94807 bytes)A1451 Male Luer to Bulkhead to .125" O.D. Barb

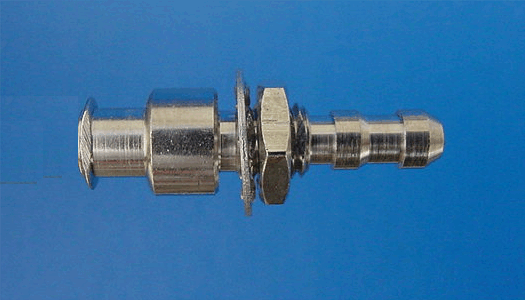

A1470webg.gif (93788 bytes)A1470 Female Luer to Bulkhead to .195" O.D. Barb

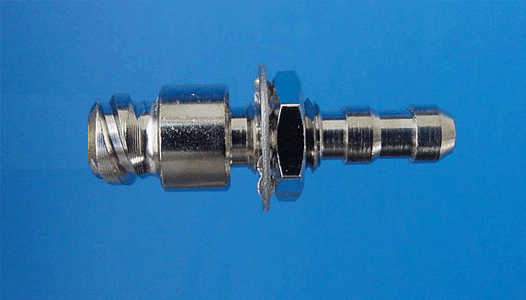

A7470webg.gif (88093 bytes)A7470 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Bulkhead to .195" O.D. Barb

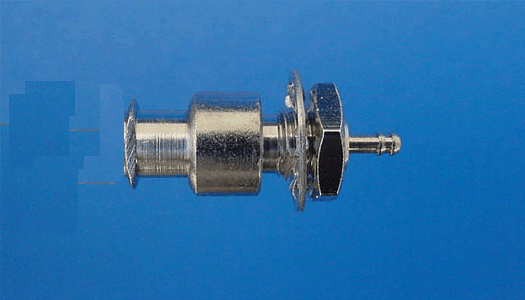

A1475webg.gif (90254 bytes)A1475 Female Luer to Bulkhead to .085" O.D. Barb

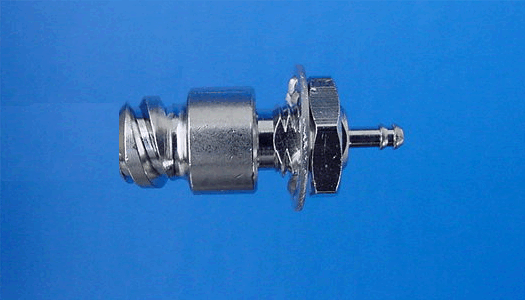

A7475webg.gif (86485 bytes)A7475 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Bulkhead to .085" O.D. Barb

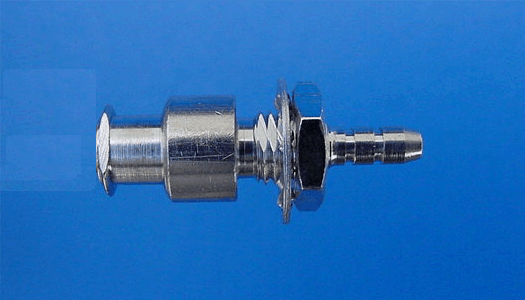

A1480webg.gif (89760 bytes)A1480 Female Luer to Bulkhead to .125" O.D. Barb

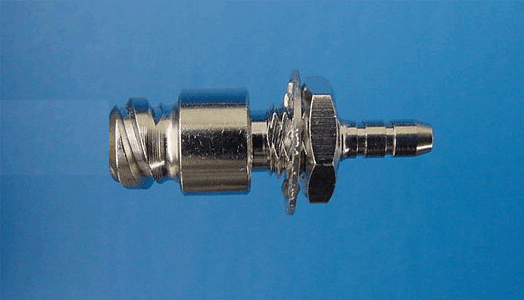

A7480webg.gif (89390 bytes)A7480 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to Bulkhead to .125" O.D. Barb

To demonstrate the application of the Double D Section
