Luer Hub		 All of our Luer Fittings are manufactured to ISO 594/1,2  the international standard for Luer Tapered components.

Our products are pressure tested at 45 PSI at various stages of the manufacturing process, as well as at final inspection.

All of the following products are passivated to ASTM A-967.

Please note:  The description below identifies the outside diameter (O.D.) of the barb.  To assist you in selecting the appropriate tube barb, click on Tube Barb Detail.

Please note:  The following fittings are bulkhead style for panel mount applications, complete with Double D section (See below) and mounting hardware.

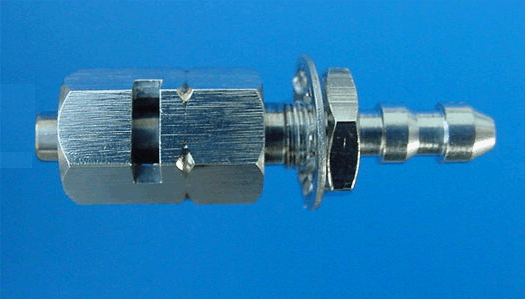

SSA1440webg.gif (86566 bytes)SSA1440 Male Luer Lock to bulkhead, .195" O. D. Barb

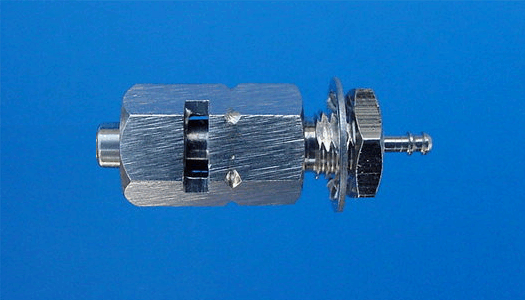

SSA1445webg.gif (92861 bytes)SSA1445 Male Luer Lock to bulkhead, .085" O.D. Barb

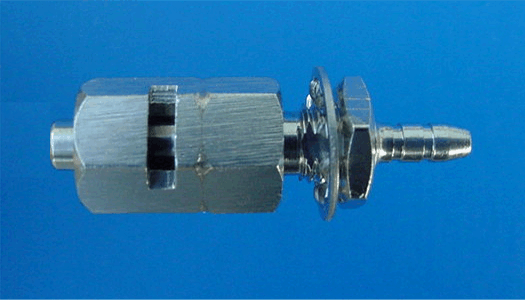

SSA1450webg.gif (89600 bytes)SSA1450 Male Luer Lock to bulkhead, .125" O. D. Barb

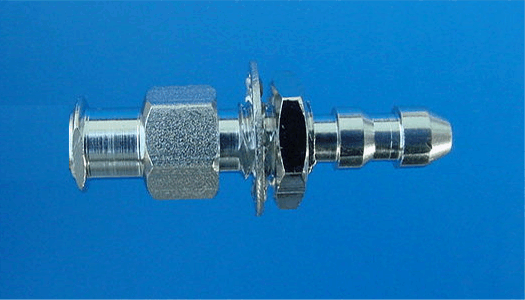

SSA1470webg.gif (88719 bytes)SSA1470 Female Luer to bulkhead, .195" O.D. Barb

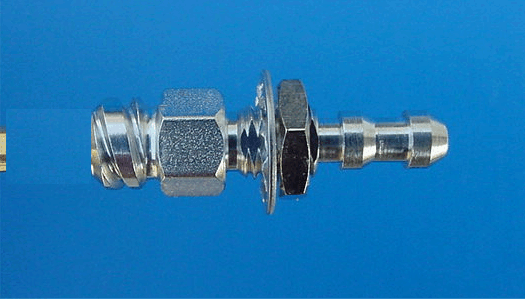

SSA7470webg.gif (89921 bytes)SSA7470 Female Luer to bulkhead, .195" O.D. Barb

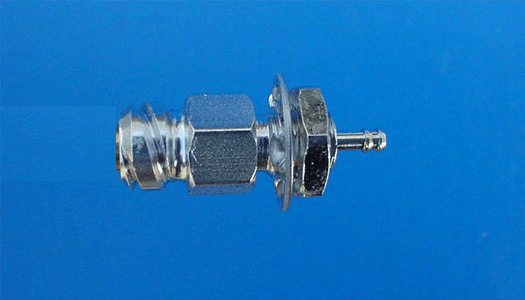

SSA7475webg.gif (91238 bytes)SSA7475 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to bulkhead, .085" O.D. Barb

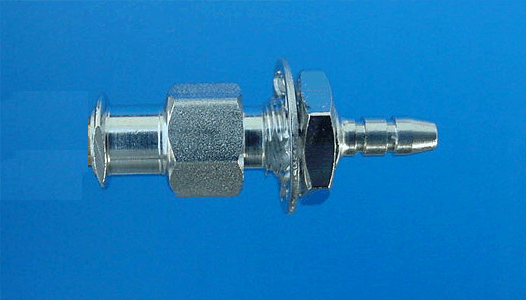

SSA1480webg.gif (86542 bytes)SSA1480 Female Luer to bulkhead, .125" O.D. Barb

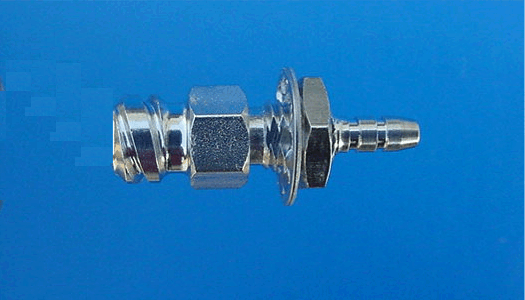

SSA7480webg.gif (88463 bytes)SSA7480 These adaptors by S4J are metal (hard) female luer locks that will reduce the stripping of threads when mated with plastic (soft) male luer locks. Female Luer to bulkhead, .125" O.D. Barb

To demonstrate the application of the Double D Section
click here
